UT503PV PV Insulation Tester UNI-T

Código: UT503PV

Consultar por WhatsApp
  • Pago contra entregaPagas cuando recibes tu pedido
  • Envíos a todo el PerúLima y provincias
  • Atención por WhatsAppTe asesoramos antes y después de tu compra
SKU: UT503PV Categoría: Marca:
Compartir

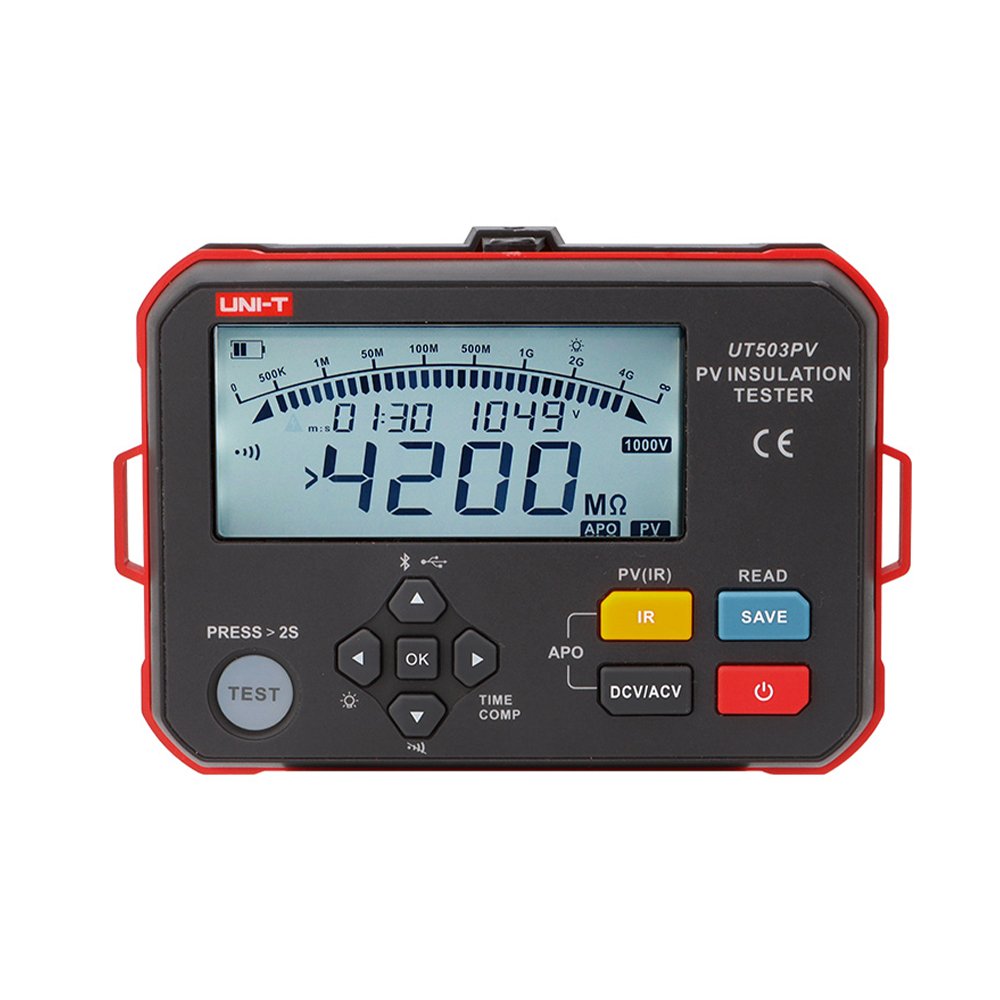

UT503PV PV Insulation Tester «UNI-T»



Specifications
Output voltage Insulation resistance PV insulation resistance Accuracy
125V <1.51MΩ N/A For reference only
1.51MΩ~100.0MΩ ±(1.5%+5)
100.1MΩ~1000MΩ ±(5%+6)
250V <1.51MΩ N/A For reference only
1.51MΩ~200.0MΩ ±(1.5%+5)
200.1MΩ~2000MΩ ±(5%+6)
500V <1.51MΩ <1.51MΩ For reference only
1.51MΩ~1000MΩ 1.51MΩ~1000MΩ ±(1.5%+5)
1001MΩ~4000MΩ 1001MΩ~4000MΩ ±(5%+6)
1000V <1.51MΩ <1.51MΩ For reference only
1.51MΩ~1000MΩ 1.51MΩ~1000MΩ ±(1.5%+5)
1001MΩ~4000MΩ 1001MΩ~4000MΩ ±(5%+6)
Voltage measurement DC Voltage 5~1000V dc ±(1%+4)
AC Voltage 5~600V ac ±(1%+4)
Short circuit current IR measurement <1.5mA
PV IR measurement <1.2mA
Continue measuremenet(IR) √(default setting) Compare function(IR) √
Time measurement √ Stepping voltage √
Auto discharge √ High voltage alarm √
Energized device test IR measurement: DO NOT test if the energized device voltage is above 25V
PV IR measurement: the energized device voltage should under DC 1000V
Backlight Auto & Manual backlight; auto power off in 30s
Data storage 1000 set
Data Communication transmission via USB cable
transmission via Bluetooth app
IP IP54(with cap closed)
CAT rating CAT II 1000V, CAT III 600V
Certificates CE, UKCA
