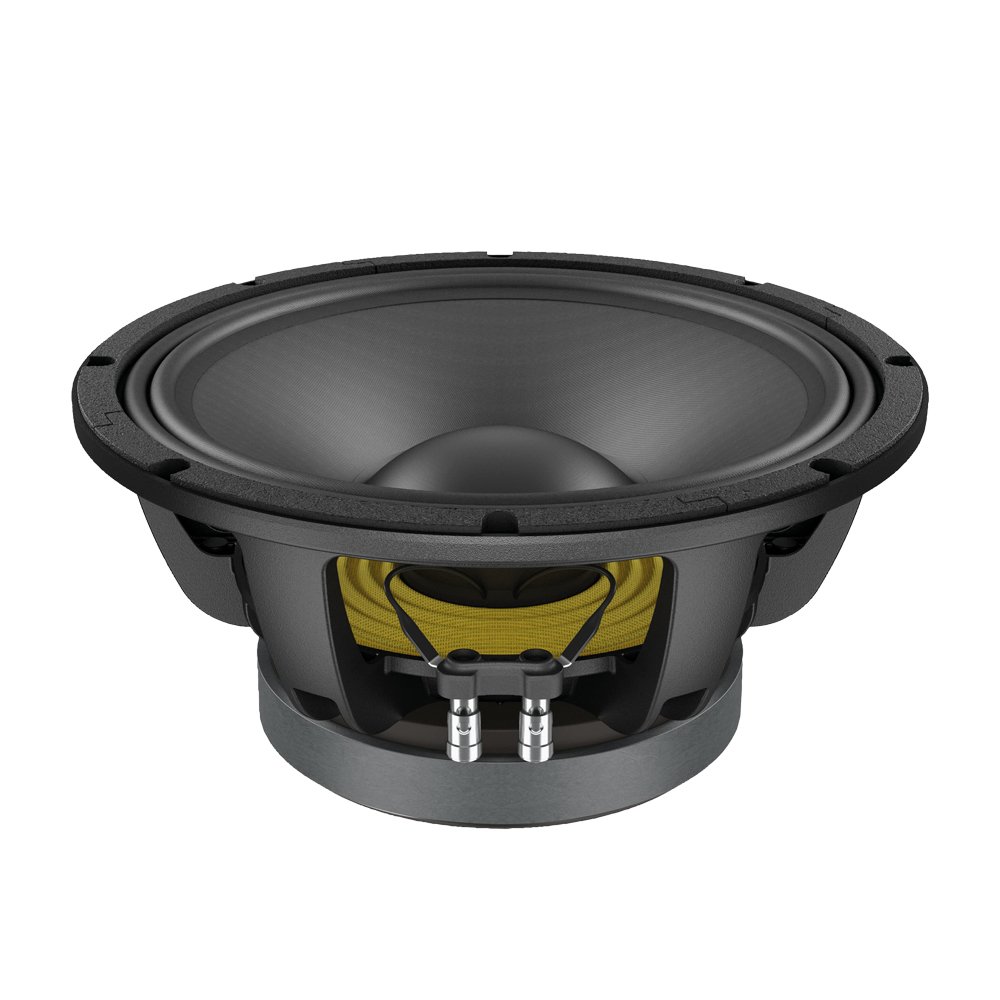

WAF123.01 PARLANTE 12″ 8 OHM FERRITA 1000W – BOBINA 3″ CCAW«LAVOCE»
El precio original era: $141.78.$134.72El precio actual es: $134.72.
Sin existencias
Descripción
WAF123.01 PARLANTE 12″ 8 OHM FERRITA 1000W – BOBINA 3″ CCAW«LAVOCE»
FEATURES
– 3 INCH CCAW VOICE COIL
– 98 dB/SPL SENSITIVITY
– 1000 WATT PROGRAM POWER HANDLING
– FEM OPTIMIZED MOTOR AND SUSPENSIONS
– OPTIMIZED COOLING SYSTEM
– ALUMINIUM DEMODULATING RING
ESPECIFICACIONES
| Nominal diameter | 300 (12) mm (in) |
|---|---|
| Nominal Impedance | 8 Ohm |
| Minimum impedance | 5.6 Ohm |
| Program power | 1000 W |
| AES Power rating | 500 W |
| Sensitivity | 98 dB |
| Frequency range | 65 ÷ 3000 Hz |
| Voice coil diameter | 75 (3) mm (in) |
| Chassis material | Aluminium |
| Magnet material | Ferrite |
| Magnet dimensions OD x ID x h | 190 x 95 x 25 (7.48 x 3.74 x 0.98) mm (in) |
| Coil material | CCAW |
| Former material | Glass Fiber |
| Cone material | Water Resistant Treated Paper + Water Proof Front Side Treatment |
| Surround material | Polycotton |
| Xmax | 7.5 (0.3) mm (in) |
| Xmech | 13 (0.51) mm (in) |
| Gap height | 10 (0.39) mm (in) |
| Voice coil winding height | 20 (0.79) mm (in) |
| Driver displacement volume | 2.8 (0.1) l (ft³) |
| Recommended Enclosure | 61.7 (2.18) l (ft³) |
| Recommended Tuning | 70 Hz |
