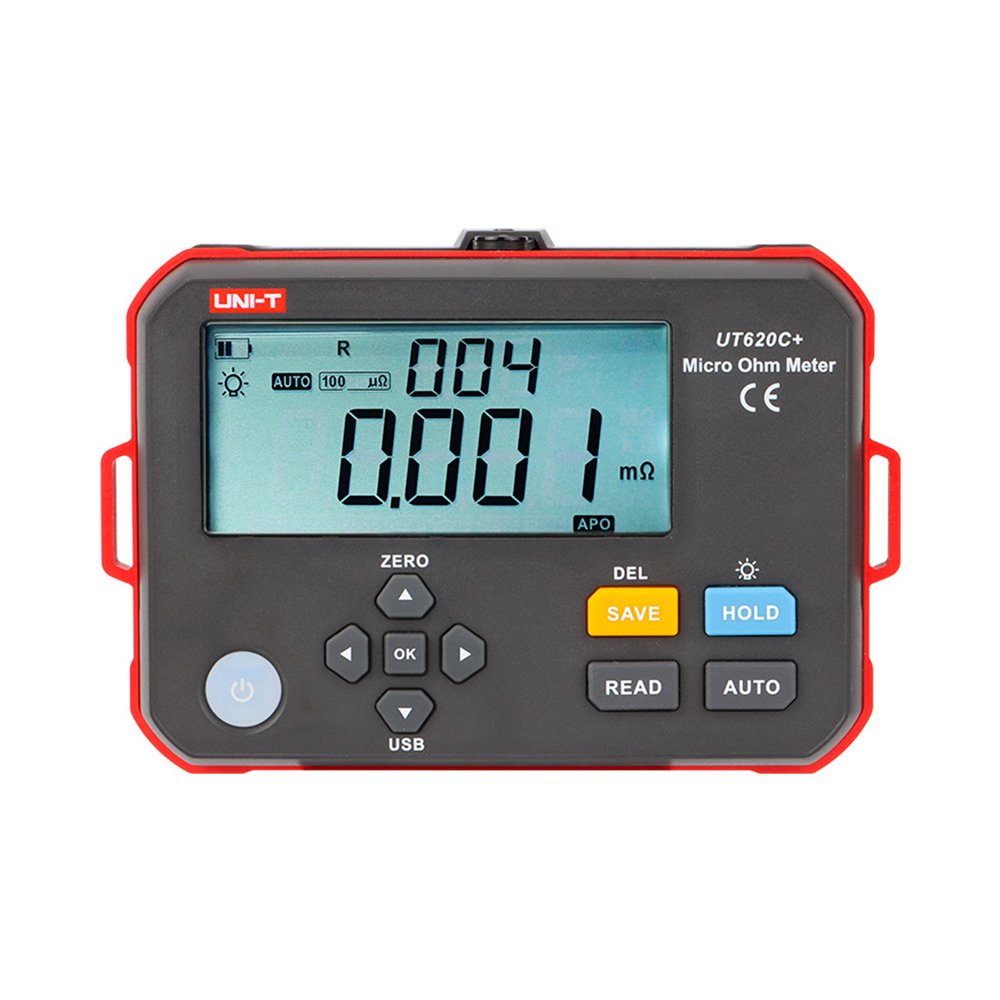

UT620C+ Micro-ohmmeter «UNI-T»
Descripción
UT620C+ Micro-ohmmeter «UNI-T»
| Specification | ||
| Resistance range | 100.1kΩ~300.0kΩ/3uA | 100Ω |
| 10.01kΩ~100.00kΩ/3uA | 10Ω | |
| 1.001kΩ~10.000kΩ/10uA | 1Ω | |
| 100.1Ω~1000.0Ω/100uA | 0.1Ω | |
| 10.01Ω~100.00Ω/1mA | 0.01Ω | |
| 1.001Ω~10.000Ω/10mA | 0.001Ω | |
| 100.1mΩ~1000.00mΩ/100mA | 0.1mΩ | |
| 0.001mΩ~100.00mΩ/1A | 0.01/0.001mΩ | |
| Features | ||
| Functions | Measuring the resistance of all kinds of wires, switches, connectors, contactors, fuses, coils, transformer windings, metal riveting, and so on. | |
| Measurement methods | Four-wire method | |
| Test current | ≤1A | |
| Open circuit voltage | ≤4.2V | |
| Input protection | ≤36V AC/DC | |
| Power consumption | measurement power: ≤8W | |
| Measuring speed | about 2times/s | |
| Automatic power off | 15 minutes if no operation | |
| storage | 500 set | |
| display type | segment LCD | |
| USB ingerface | Type C | |
| Backlight | Yes | |
| Low battery indication | Yes | |
| IP rating | IP54 | |
| Certificate | CE, RoHS | |
