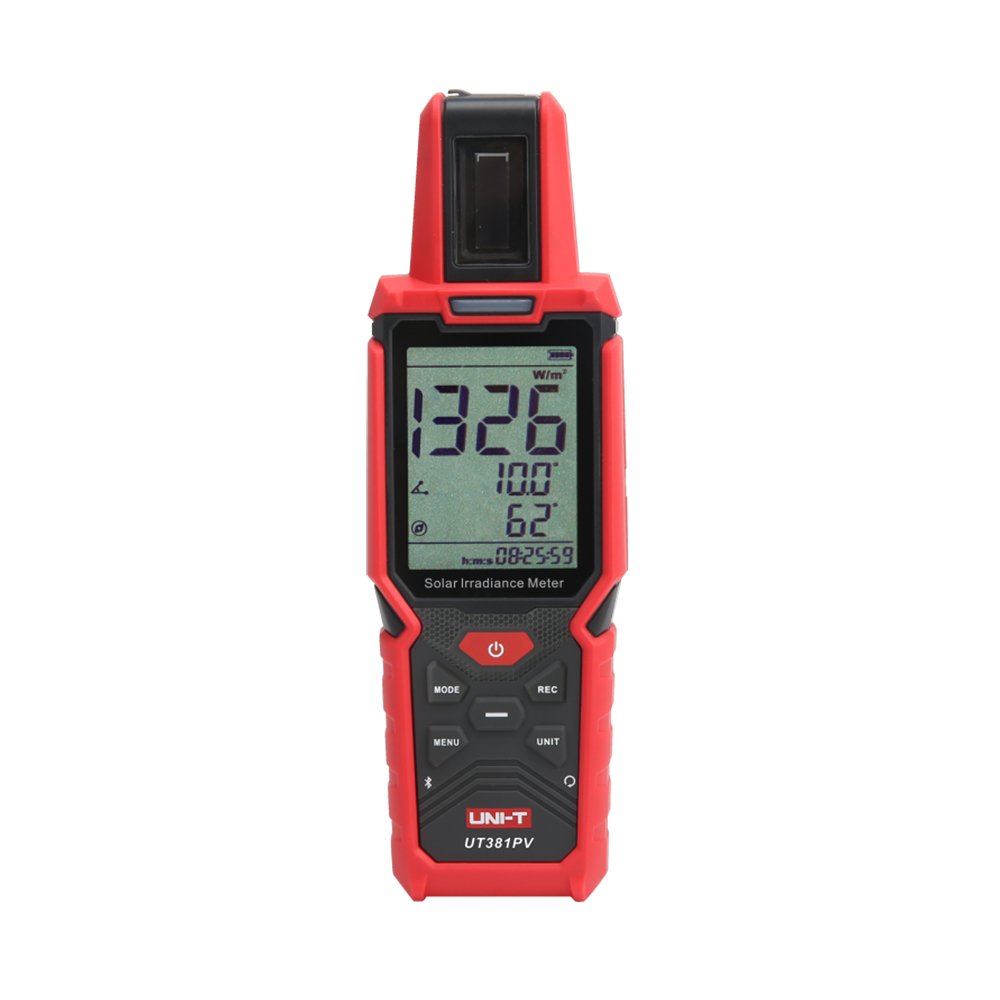

UT381PV Solar Irradiance Meter «UNI-T»
Descripción
UT381PV Solar Irradiance Meter «UNI-T»
| Specification | |||
| Functions | Range | Resolution | Accuracy |
| Solar Irradiance Measurement | 0 ～ 1400W/m² | 1 | ±(5.0%rdg+5dgts) |
| 0～500 Btu/(ft² · h) | |||
| Temperature Measurement | -40～120℃ | 0.1 | ±1℃ (-10～75℃) |
| ±2℃ (others) | |||
| –40~248°F | 0.2/1 (>100℉) | ±2℉(14～167℉) | |
| ±4℉(others) | |||
| Inclination Measurement | –90.0~+90.0 ° | 0.1 | ±1.5°(-50～+50°) |
| ±2.5°(-85～50°,+50～+85°) ±3.5°(others) | |||
| Azimuth Measurement | 0~360° | 1 | ±7° |
| Data Storage | 12800 sets | ||
| Storage interval | 1s ~ 60min | ||
| LED Indicator | ✔ | ||
| Sound Prompts | ✔ | ||
| Auto Power Off | 30 minutes (no operations) | ||
| Compass Calibration | ✔ | ||
| Mobile APP | ✔ | ||
| Time Setting | ✔ | ||
| Bluetooth wireless transmission distance | 100m | ||
| Working Height | ≤2000 meters | ||
| Working Environment | -20℃～60℃, ≤90%RH(non-condensing ) | ||
| Storage Environment | -30℃～70℃, ≤80%RH(non-condensing ) | ||
| IP Rating | IP65 | ||
| Drop Test | 2 meters | ||
