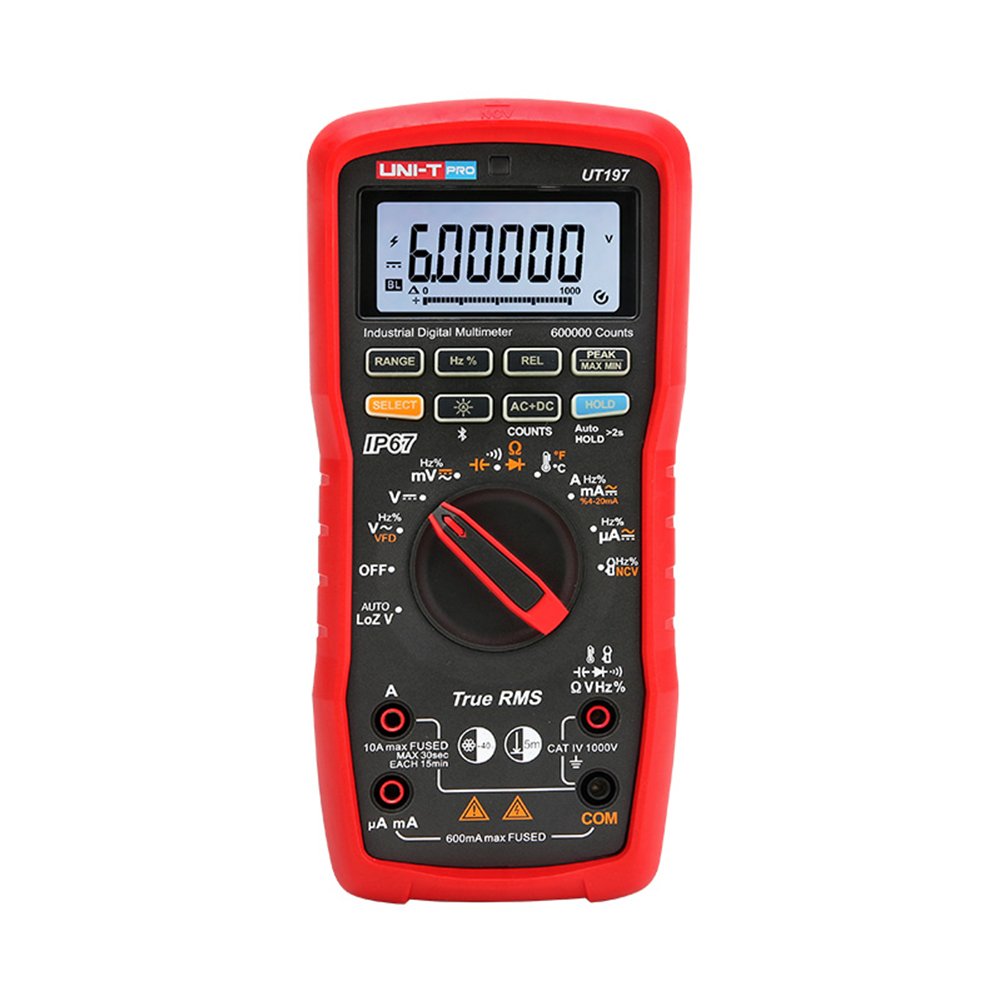

UT197 Industrial Digital Multimeter «UNI-T»

UT197 Industrial Digital Multimeter «UNI-T»

AC Current (A) 600.00uA/6000.0uA/60.000mA/600.00mA/6.0000A/10.000A ±(0.5%+50)
DC Current (A) 600.00uA/6000.0uA/60.000mA/600.00mA/6.0000A/10.000A ±(0.1%+20)
AC+DC Current (A) 600.0uA/6000uA/60.00mA/600.0mA/6.000A/10.00A ±(1.0%+5)
AC Voltage (V) 600.00mV/6.0000V/60.000V/600.00V/1000.0V ±(0.3%+20)
Voltage (DCV) (60000 count) 600.00mV/6.0000V/60.000V/600.00V/1000.0V ±(0.03%+5)
Voltage (DCV) (600000 count) 600.000mV/6.00000V/60.0000V/600.000V/1000.00V ±(0.015%+10)
Auto AC/DC Voltage 600.0V ±（0.8％＋5）
Voltage Range (ACV+DCV) 600.0mV/6.000V/60.00V/600.0V/1000V ±（0.8％＋5）
Externalcurrent (DC) (Optional: UT-CS07) 100.0A（(10mV/A)/1000A(1V/A) ±(1.5%+5)
Externalcurrent (AC) (Optional: UT-CS07) 100.0A（(10mV/A)/1000A(1V/A) ±(1.5%+5)
Frequency (Hz) 10Hz～1MHz ±(0.002%+5)
Resistance (Ω) 600.00Ω/6.0000kΩ/60.000kΩ/600.00kΩ/6.0000MΩ/60.00MΩ ±(0.07％+2）
Capacitance (F) 60.00nF/600.0nF/6.000μF/60.00μF/600.0μF/6.000mF/60.00mF ±(0.8％+3）
Temperature (℃) -40℃~1000℃ ±(1.0%+15)
Temperature (℉) -40℉~1832℉ ±(1.0%+30)
Duty Cycle (%) 10Hz～10kHz
(10%~90%) ±(1.2%+5)
Features
True RMS Value ✔
Display count 600000 (DCV); 9999 (frequency) ✔
Diode Test 3.0V ✔
Non-Contact Voltage ✔
Continuity Buzzer ✔
Data Hold (Manual/Auto) ✔
Peak Capture ✔
Maximum/Minimum Value ✔
High Voltage Alarm ✔
Low Battery Indicator ✔
Miswired Probe Alarm ✔
Overrange Indicator ✔
Auto Power Off Around 15 minutes ✔
Auto Backlight ✔
Bluetooth Communication ✔
Drop Test 5m
IP Protection Level IP67
Safety Standard Level CAT IV 1000V
Certification CE，cETLus， ROHS
