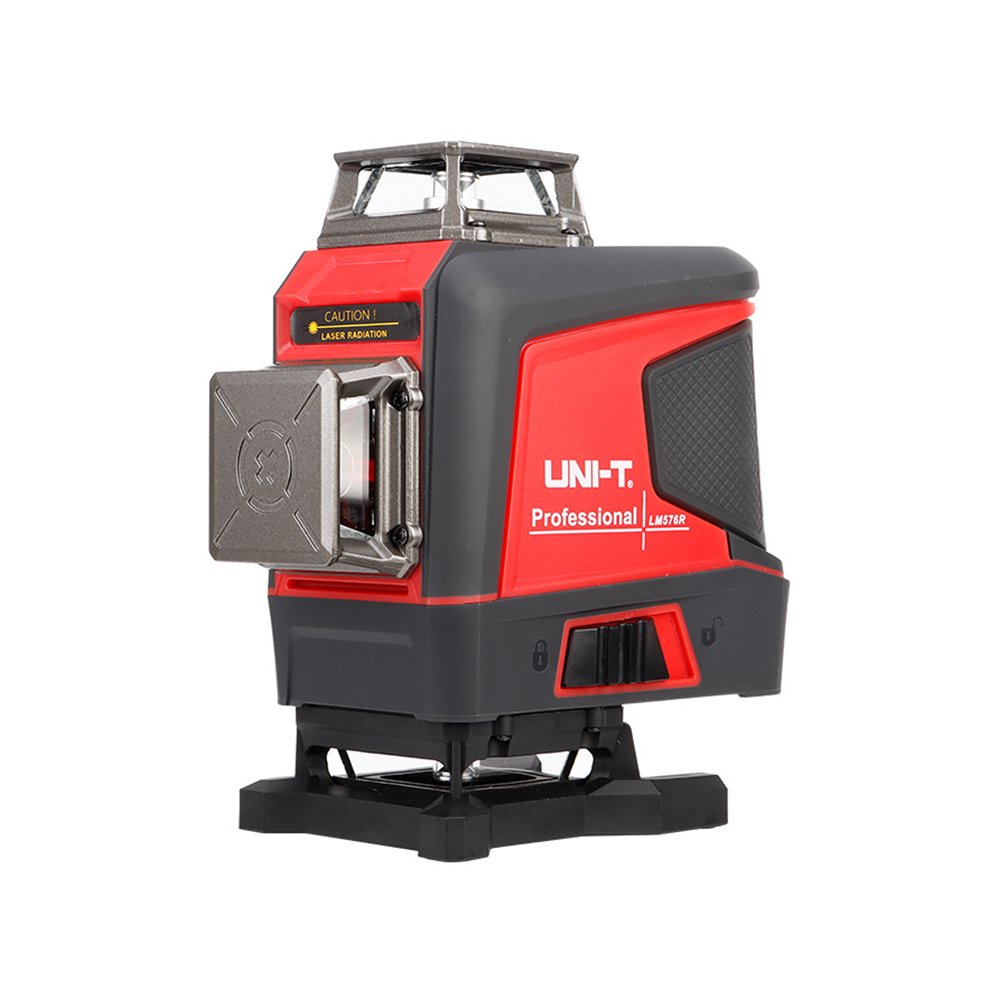

LM576R Laser Level «UNI-T»
| Specifications | LM573R | LM575R | LM576R | LM585R |
| Laser tube | SHARP LD | |||
| Laser type | Red, high brightness | |||
| Laser lines | 12 lines | 12 lines | 16 lines | 8 lines |
| Laser wavelength | 635nm±10nm | |||
| Laser class | CLASS II | |||
| Horizontal accuracy | ≤±3mm/10m | |||
| Vertical accuracy | ≤±3mm/10m | |||
| Brightness adjustment | 3 scales adjustable | |||
| Laser linewidth | ≤5mm±1/10m (indoor lighting: 80~100lux) | |||
| Emission angle | 360° | 360° | 360° | Horizontal: 360°, vertical: 120° |
| Leveling range | ±(3±1)° | |||
| Minimum distance to wall/ground | 10mm | Wall: 10mm, ground: 15mm | Wall: 10mm, ground: 15mm | 20mm |
| Battery life | ＞30h | |||
| Operating range | In the highest brightness, radius＞30m | |||
| Leveling modes | Magnetic damping, heavy hammer | |||
| Alarm modes | Buzzer + laser line flashes | |||
| Diagonal mode | √ | |||
| Operating temperature | -10~50℃ | |||
| Power supply | 3.7V 6000mAh | |||
