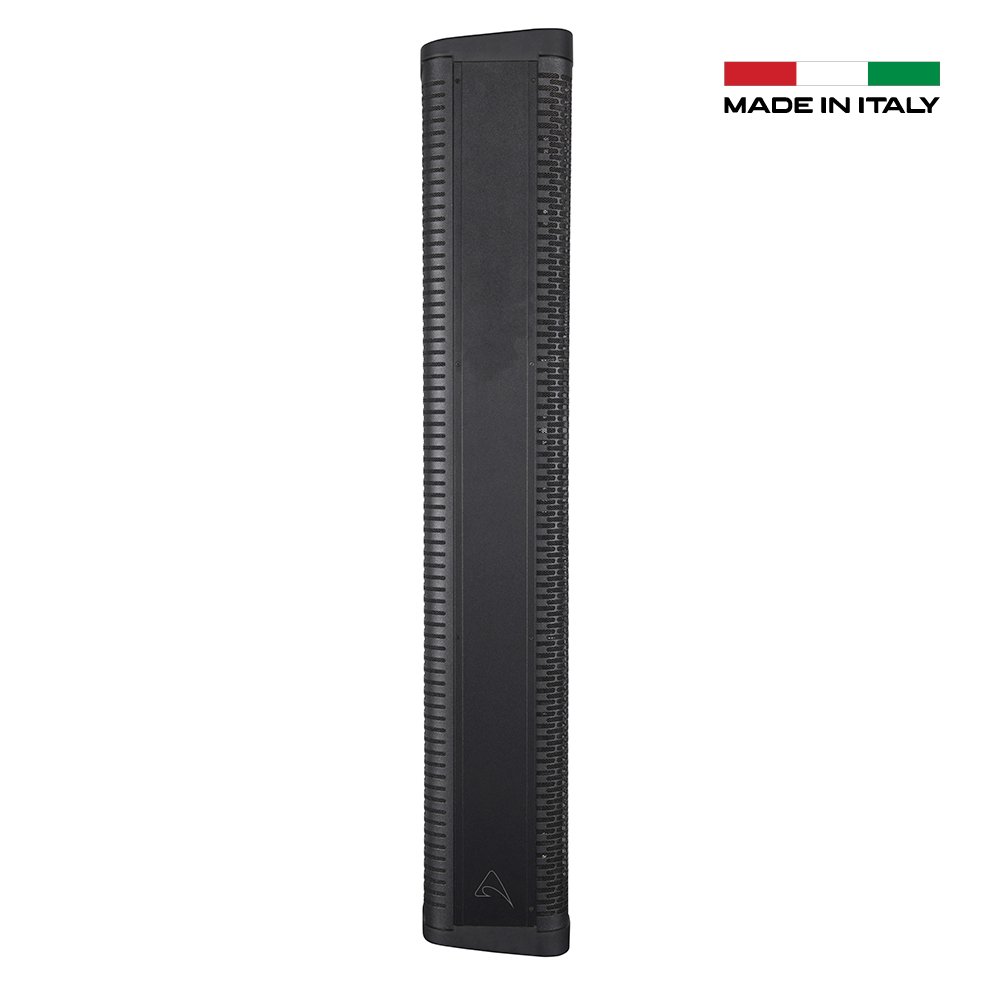

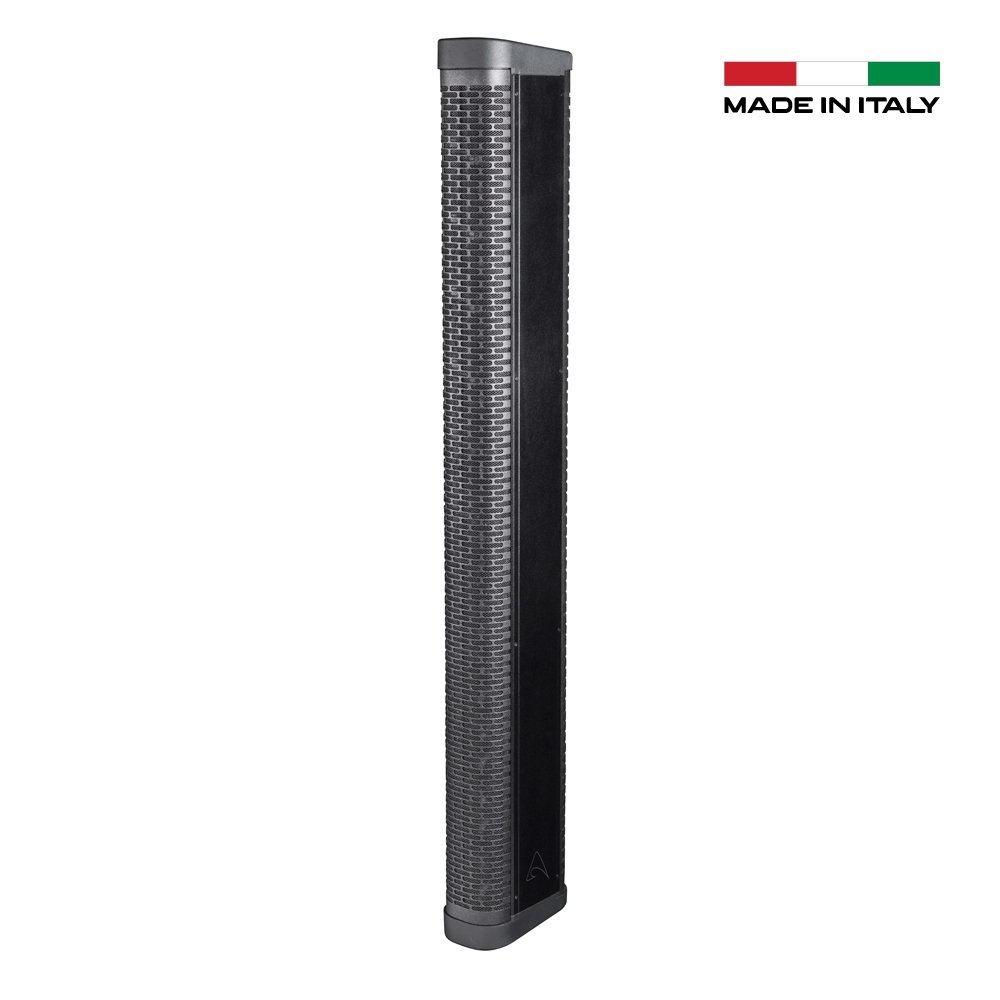

AX12C LINE ARRAY PORTATIL PASIVO 12X3.5″ 16OHM SPL 130 PEAK 720W CON CONECTOR NEUTRIK SPEAKON NL4X2 «AXIOM»

AX12C LINE ARRAY PORTATIL PASIVO 12X3.5″ 16OHM SPL 130 PEAK 720W CON CONECTOR NEUTRIK SPEAKON NL4X2 «AXIOM»

DESCRIPCIÓN TÉCNICA

• Frequency Response (-6dB): 180 Hz – 16 KHz (Processed)
• Nominal Impedance: 16 Ohm
• Horizontal Coverage Angle: 100°
• Sensitivity (4V): 105 dB SPL @ 1m*
• Maximum (peak) SPL: 130 dB SPL @ 1m*

TRANSDUCERS

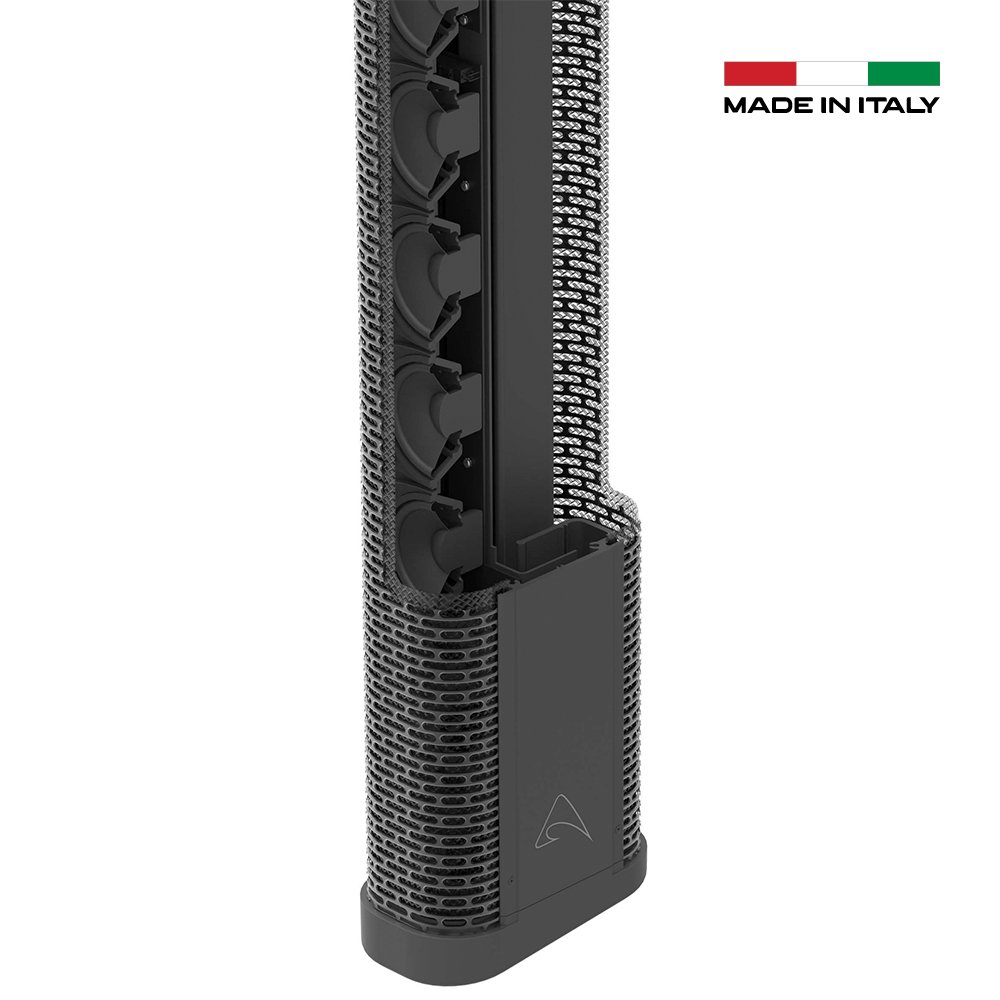

• Type: 12 x 3.5″ (88mm) Neodymium magnet woofers, 1″ (25mm) VC
• Cone: Waterproof Cone
• Voice Coil Type: Ventilated voice coil

INPUT CONNECTIONS

• Connector Type: Neutrik® Speakon® NL4 x 2 (1+/1- signal IN & LINK ; 2+/2- thru)

POWER HANDLING

• Continuous AES Pink Noise Power : 360 W
• Program Power: 720 W

ENCLOSURE & CONSTRUCTION

• Width: 107 mm (4.2″)
• Height: 1166 mm (45.9″) – without flying system 1212 mm (47.7″) – with flying system
• Depth: 193 mm (7.6″)
• Enclosure Material: Aluminum
• Finishing: Black anodization, black epoxy paint

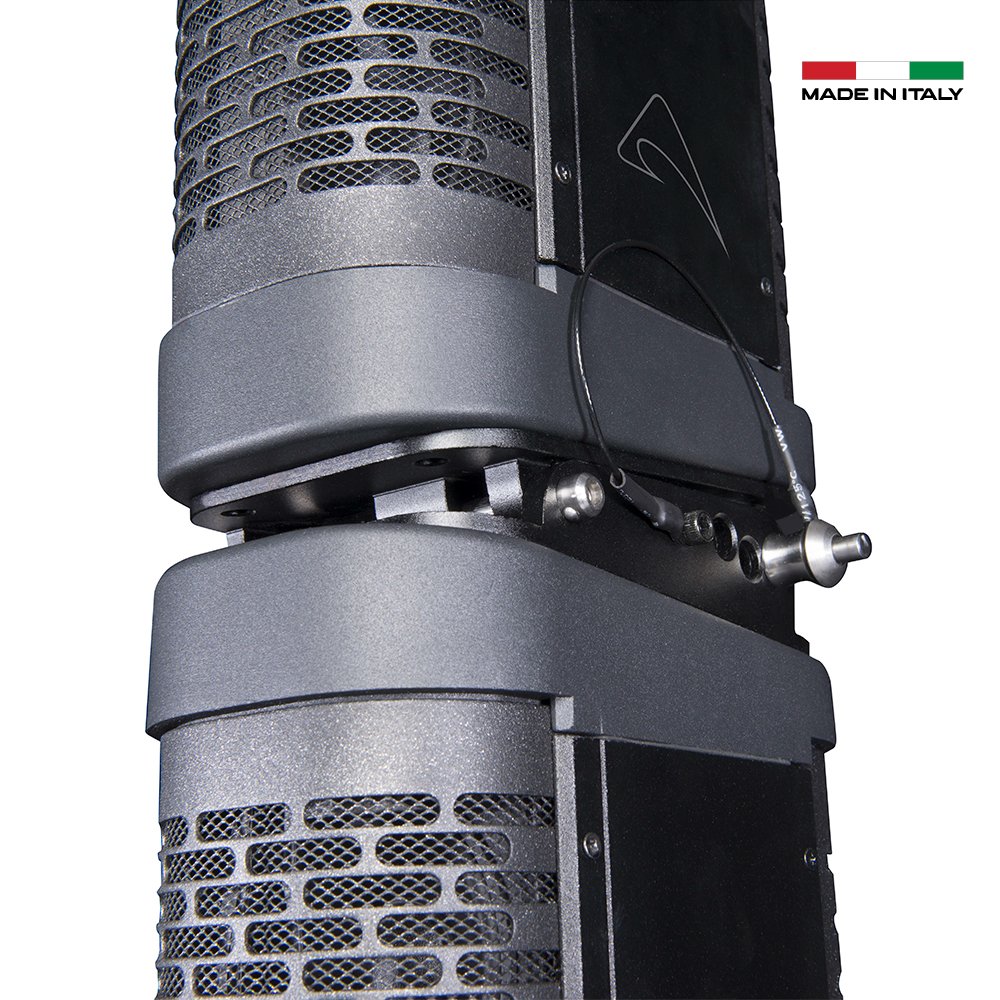

• Flying system: Aluminum Fast Link structure with dedicated pins
• Net Weight: 13 kg (28.6 lbs.)
