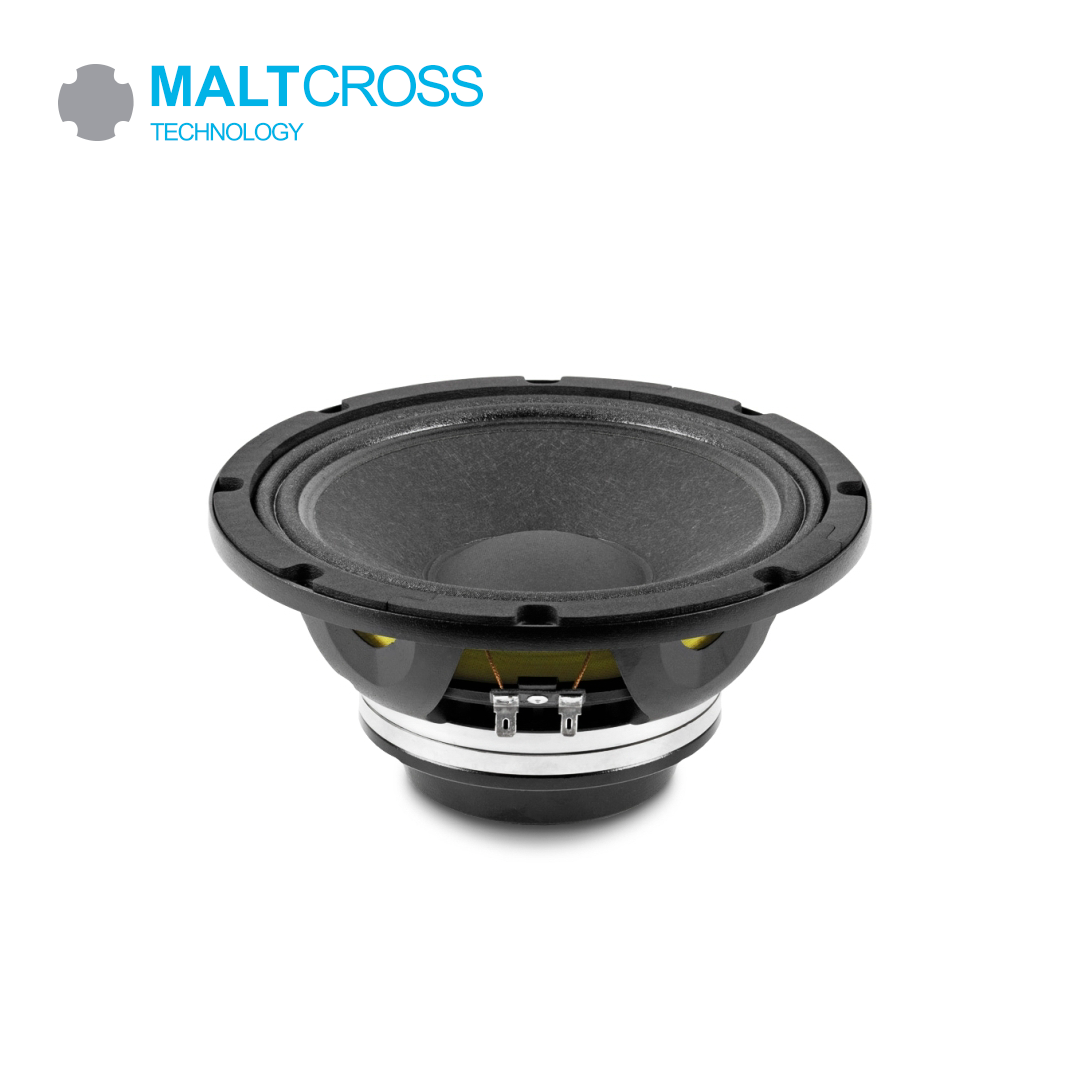

8MC500Nd PARLANTE 8″ 1000W NEODIMIO 8OHM «BEYMA»

8MC500Nd PARLANTE 8″ 1000W NEODIMIO 8OHM «BEYMA»

KEY FEATURES

• High power handling: 1.000 W program power
• Exclusive Malt Cross® Technology Cooling System
• Low power compression losses
• High sensitivity: 98 dB (1W / 1m)
• FEA optimized neodymium magnetic circuit
• Optimized non-linear behaviour
• 2,5” DUO double layer in/out copper voice coil
• Aluminium demodulating ring
• Weatherproof cone with treatment for both sides
• Extended controlled displacement: Xmax ± 5 mm
• 42 mm peak-to-peak excursion before damage
• Weight 2,8 kg
• Optimized for bass or mid-bass high performance audio systems

TECHNICAL SPECIFICATIONS

• Nominal diameter: 200 mm 8 in
• Rated impedance: 8 Ω
• Minimum impedance: 7,1 Ω
• Power capacity 1: 500 WAES
• Program power 2: 1.000 W
• Sensitivity: 98 dB 1W / 1m @ ZN
• Frequency range: 80 – 6.000 Hz
• Recom. enclosure: Vb = 12 l
• (Bass-reflex design): Fb = 90 Hz
• Voice coil diameter: 63,5 mm 2,5 in
• Bl factor: 16,7 N/A
• Moving mass: 0,023 kg
• Voice coil length: 14 mm
• Air gap height: 8 mm
• Xdamage (peak to peak): 42 mm
