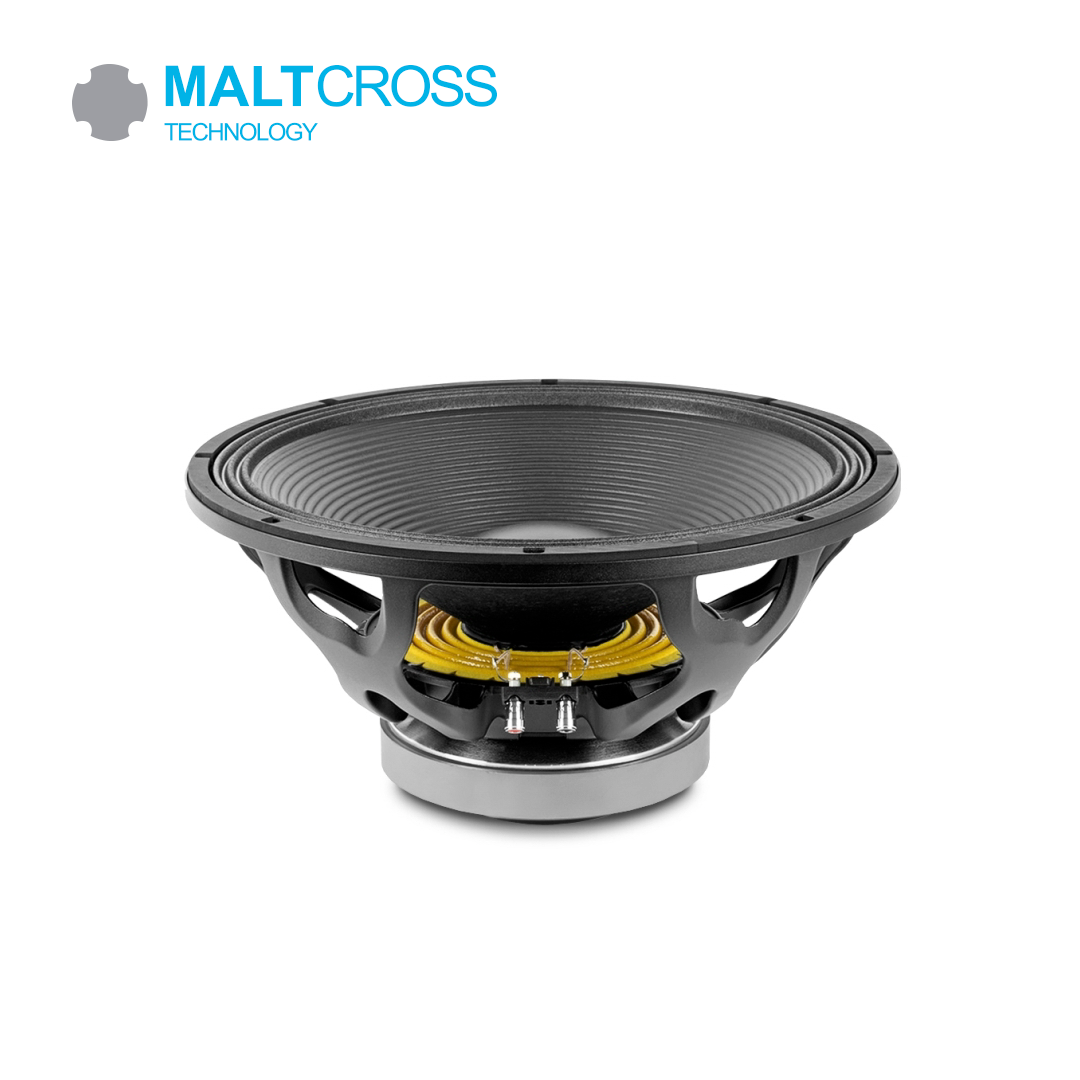

18QLEX1600Fe PARLANTE 18″ 3200W FERRITA 8OHM «BEYMA»

18QLEX1600Fe PARLANTE 18″ 3200W FERRITA 8OHM «BEYMA»

• High power handling and low distortion 18” subwoofer
• High force factor design for top performance applications
• Exclusive Malt Cross® Technology Cooling System
• Low power compression losses
• High sensitivity: 97 dB (1W / 1m)
• FEA optimized ceramic magnetic circuit
• Aluminium demodulating ring
• Ultra low air noise
• Optimized linear behaviour
• Exclusive NCR membrane (Neck Coupling Reinforcement)
• Weatherproof cone with treatment for both sides
• Double silicone spider
• 4” QUATTRO in/out copper voice coil
• Extended controlled displacement: Xmax ± 13 mm
• 60 mm peak-to-peak excursion before damage
• Optimized for direct radiation and band-pass subwoofer applications

TECHNICAL SPECIFICATIONS

• Nominal diameter: 460 mm 18 in
• Rated impedance: 8 Ω
• Minimum impedance: 6,3 Ω
• Power capacity 1: 1.600 WAES
• Program power 2: 3.200 W
• Sensitivity: 97 dB 1W / 1m @ ZN
• Frequency range: 30 – 1.000 Hz
• Recom. enclosure: Vb = 125 l
• (Bass-reflex design): Fb = 39 Hz
• Voice coil diameter: 101,6 mm 4 in
• Bl factor: 36,4 N/A
• Moving mass: 0,323 kg
• Voice coil length: 32 mm
• Air gap height: 15 mm
• Xdamage (peak to peak): 60 mm
